产品特点
- Intel® Open Pluggable Specification (OPS compliance)
- 9th/8th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Coffee Lake-S)
- 2 DDR4-2400 SO-DIMM for up to 32GB of memory
- 1 M.2 Key M for SATA storage (NVMe optional)
- 1 M.2 Key E for Wi-Fi solution
- Supports USB 3.2 Gen1
- Supports TPM 2.0
- Easy installation and maintenance
产品介绍

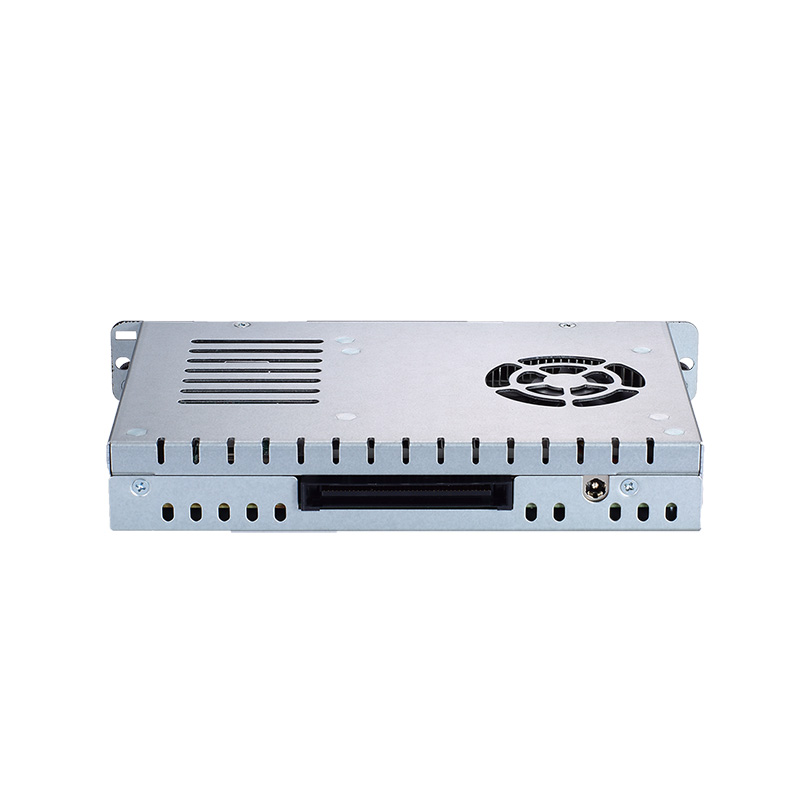

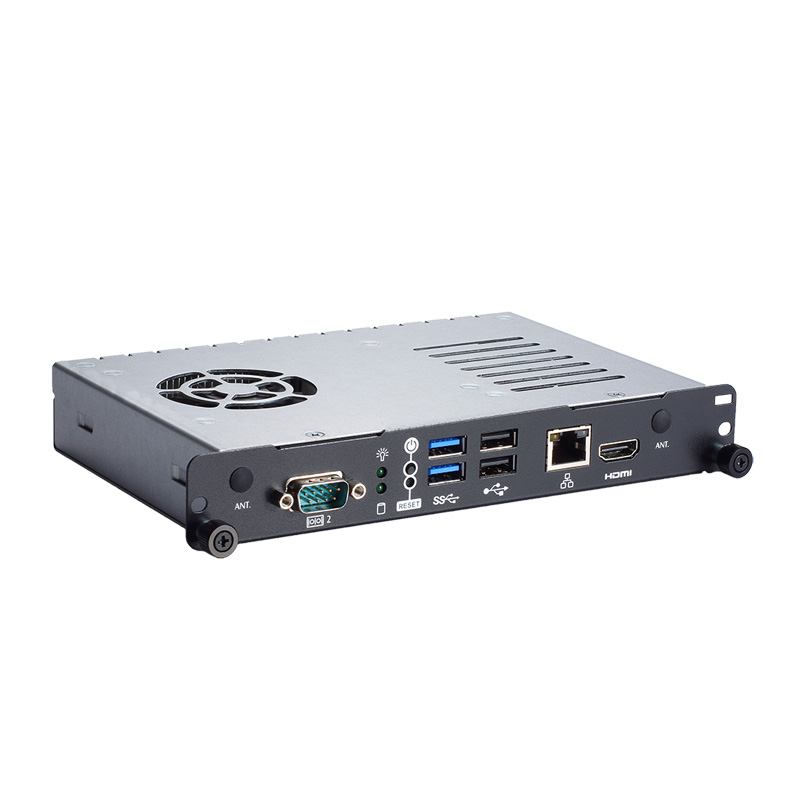

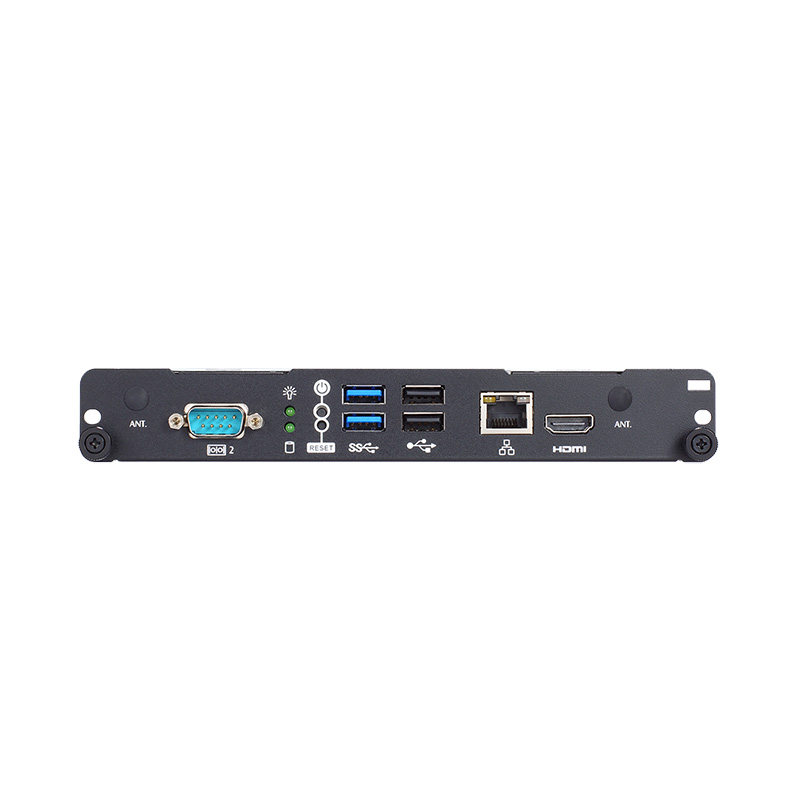

The OPS500-520-H is powered by the newest 8th generation Intel® Core™ i7/i5/i3 and Celeron® processors (code name: Coffee Lake S) with the Intel® H310 chipset. The smart cableless digital signage module has two DDR4-2400 SO-DIMMs for up to 32GB of system memory. Axiomtek's OPS500-520-H supports the LGA1151 socket-type processors offering greater flexibility for CPU selections, which is easily configured to meet various performance requirements. The OPS signage module is connected to OPS-compliant display via a standardized JAE TX-25A plug connector interface which supports DisplayPort, HDMI 2.0, USB 2.0, USB 3.1, audio and UART signals. It also has one M.2 Key E for Wi-Fi modules and one M.2 Key M supporting PCIe, SATA and SSD interfaces for storage. We believe that this new smart cableless open pluggable signage module with simplified installation, maintenance and upgrade can help you develop creative display solutions that increase your sales and improve your customers' experiences. With the enhanced multimedia performance, the Intel® Coffee Lake S-based OPS500-520-H is well suited for a wide range of digital signage applications in retail, transport, entertainment, education, and more.
