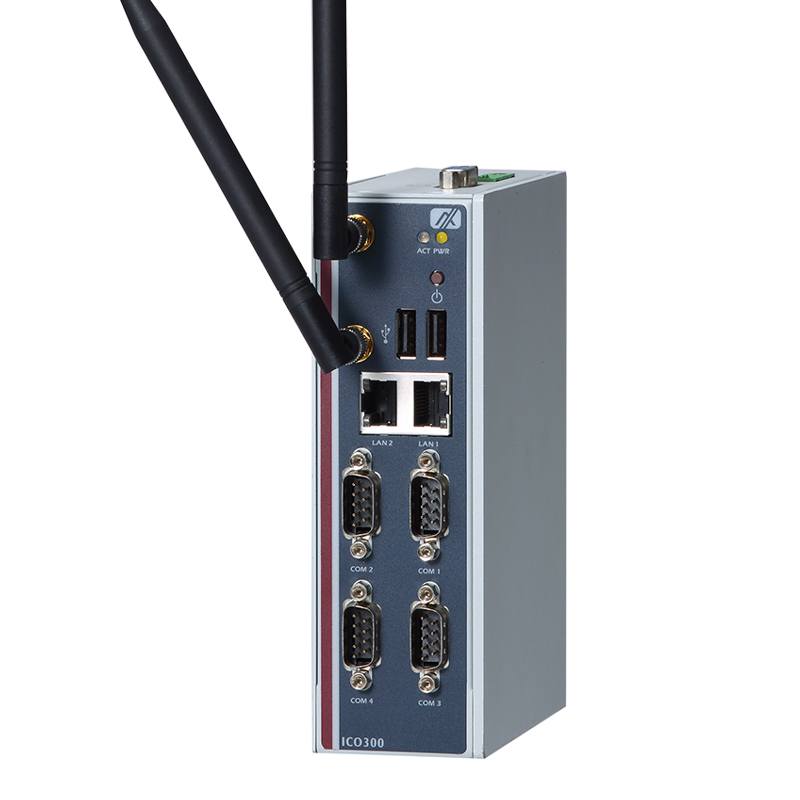

Din-rail Fanless Embedded Box PC with Atom E3815/E3827

CPU	Intel® Atom™ Processor E3815 (1.46GHz) or E3827 (1.75GHz)
Chipset	SoC integrated
System Memory	1 x DDR3L-1333/1600 SO-DIMM, up to 8GB
COM	4 x RS-232/422/485
USB	2 x USB 2.0
Ethernet	2 x 10/100/1000 Mbps Ethernet (Intel® I210-IT)
PoE	N/A
CANbus	N/A
Digital I/O	1 x DI/DO (8-bit programmable, DB9 female connector) Voltage is 5V TTL-level ESD protection corresponds to IEC 6100-4-2 (± 8KV (air); ± 4kV (contact) Programming: I/O sink current is 10mA (max.) Input/output can be programmed
Analog Input	N/A

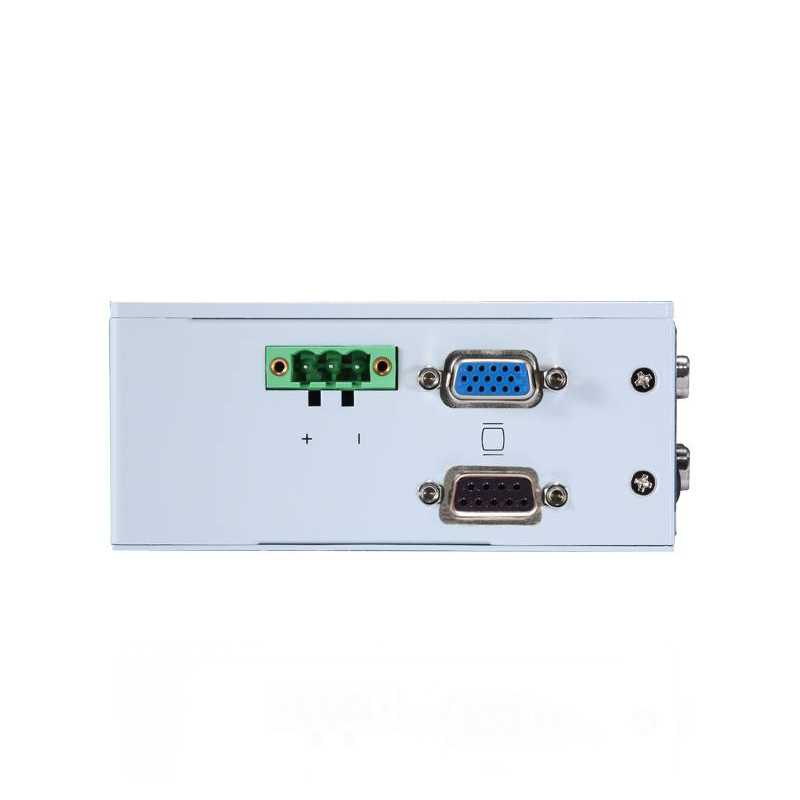

Display	1 x VGA
Expansion	1 x Full-size PCI Express Mini Card slot 1 x SIM card socket
Storage	1 x CompactFlash™ (or mSATA) 1 x SATA SSD (or HDD)
Others	RTC Battery function 2 x Antenna
Power	12 to 24 VDC, 1.21 to 0.66A (ICO300-E3815) 12 to 24 VDC, 1.42 to 0.74A (ICO300-E3827)
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Extruded aluminum and heavy-duty steel, IP40
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Vibration	2 Gms (5 to 500Hz, amplitude 0.35 mm; operation/storage/transport)
Dimensions (W x D x H)	48 x 110 x 155 mm (1.88" x 4.33" x 6.10")
Weight (net/gross)	1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications	CE, FCC, UL
EOS Support	Windows® 7 Embedded Windows® 8 Embedded Windows® 10 IoT core pro Linux support package
Software Support	N/A

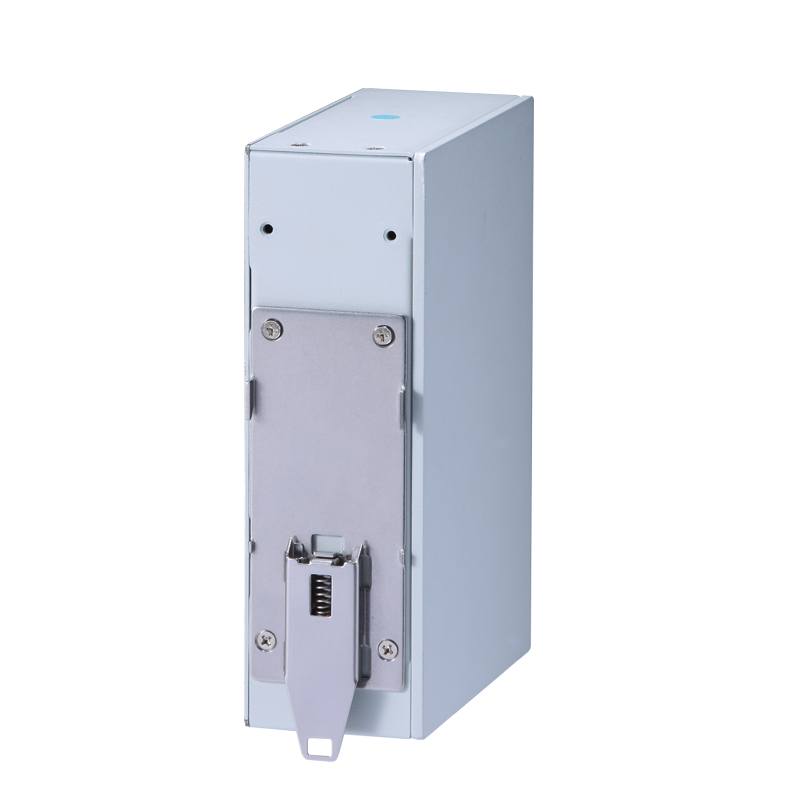

Mounting	DIN-rail Wall Mounting
