Demands of autonomous mobile robots (AMR) are increasing rapidly due to increased use in manufacturing automation and e-commerce, as well as widening labor shortage. The real-time data collection and predictive/reactive capabilities are crucial in AMR applications. AMR requires high-performance edge AI computers to quickly process and execute sequential movements. Numerous I/O interfaces are needed to connect with cameras, sensors, control boards, displays, and other end devices.

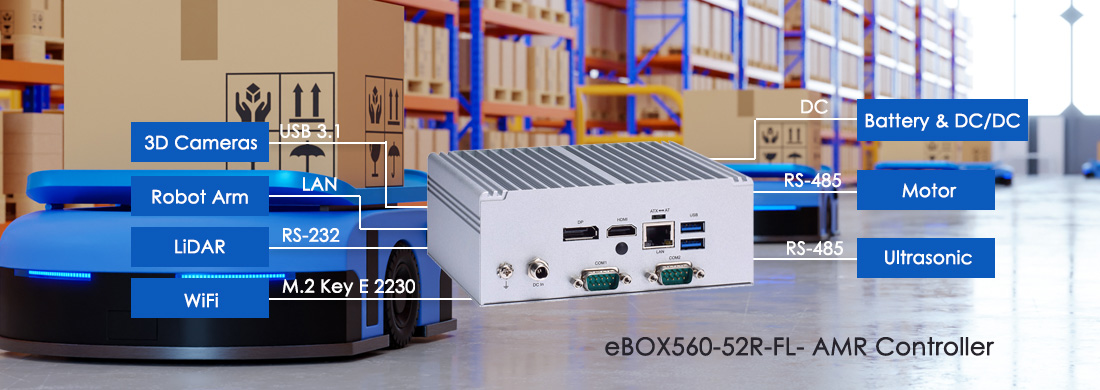

Axiomtek has proposed its eBOX560-52R-FL, an ultra-compact control system. The eBOX560-52R-FL is a powerful yet compact system suitable for being the control core of the AMR. It is powered by the Intel® Whisky Lake ULT processor and delivers high performance even when processing multiple data inputs and outputs. The system supports dual GbE ports and 4 USB ports to connect to various sensors and devices, along with one 2.5” hard drive bay that allows the system to store massive data to be transmitted to a control room or other edge computers via WiFi. We also provide customized BIOS and refined hardware specifications, allowing customers to create automated mobile robots suitable for the Industry 4.0 environment.
- Onboard Intel® Core™ i5-8365UE or Intel® Celeron® 4305UE processors
- One M.2 Key E 2230 for Wi-Fi module
- 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
- 2 GbE LAN and 2 USB 3.1 Gen2
- Supports DisplayPort++ and HDMI for dual independent displays
- Ultra-compact size and fanless design
- Wide temperatures ranging from -10°C to 50°C
- DIN-rail mounting design
Axiomtek envisions that the need for domain-specific, better embedded computer technologies will continue to rise. We have allocated top-level personnel and R&D resources to support innovation as well as design and customization services. We have also developed software solutions for use with our products, providing easy product development and deployment to our customers. We will continue striving to focus on the creation of solutions and service delivery models that help our customers achieve their goals faster and with greater success.
