| CPU |
- Intel® Processor N150 (Twin Lake) (up to 3.6 GHz, 6W)
|
| Chipset |
|
| System Memory |
- 1 x 8GB LPDDR5 onboard (16GB by project)
|
| BIOS |
|
| COM |
- 4 x RS-232/422/485 with autoflow
|
| USB |
- 2 x USB 3.2 Gen 2
- 4 x USB 2.0
|
| Ethernet/PoE |
- 2 x 2.5GbE LAN (Intel® I226-V)
|
| Display |
|
| Digital I/O |
|
| Audio |
|
| Storage |
- 1 x M.2 2280 Key M for NVMe SSD
- 1 x 2.5" SATA HDD/SSD (up to 15 mm height)
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot (USB 2.0 + PCIe + SIM signal)
- 1 x M.2 Key E 2230 socket for Wi-Fi (USB 2.0 + PCIe x1 signal)
- 1 x M.2 Key M 2280 socket for NVMe (PCIe x4 Gen3)
- 1 x internal SIM slot for PCIe Mini Card slot
|
| Others |
- TPM 2.0
- 1 x Reset switch
- 1 x Remote switch connector
- 1 x Power button
- 1 x Phoenix type VDC power input connector
- 1 x Chassis grounding
- 4 x Antenna opening
|
| Power |
- 9 to 36 VDC with ignition
- Inrush current: 1.39 to 6.67 A
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F) (with W.T. DRAM & SSD)
|
| Relative Humidity |
- 10% to 90% relative humidity, non-condensing
|
| Shock |
- IEC 60068-2-27 (with SSD: 50G, half-sine, and 11 ms duration)
- MIL-STD-810G
|
| Vibration |
- IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, and 1 hr/axis)
- MIL-STD-810G
|
Dimensions
(W x D x H) |
- 155 x 110 x 60 mm (6.1" x 4.33" x 2.36")
|
| Weight (net/gross) |
- 1.1 kg (2.4 lb)/1.5 kg (3.3 lb)
|
| Certifications |
- CE, FCC Class A, and UKCA
|
| EOS Support |
- Win 10 (21H2), Win 11 IoT, and Linux
|
| Software Support |
|
| Mounting |
- Wall mount kit

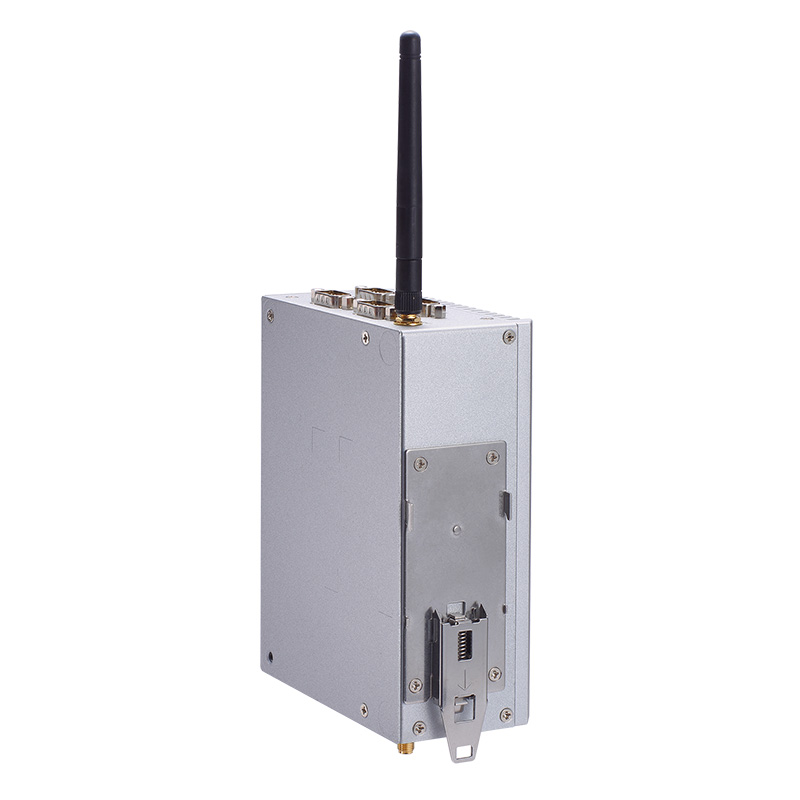

- DIN-rail kit
- VESA mount kit
|
