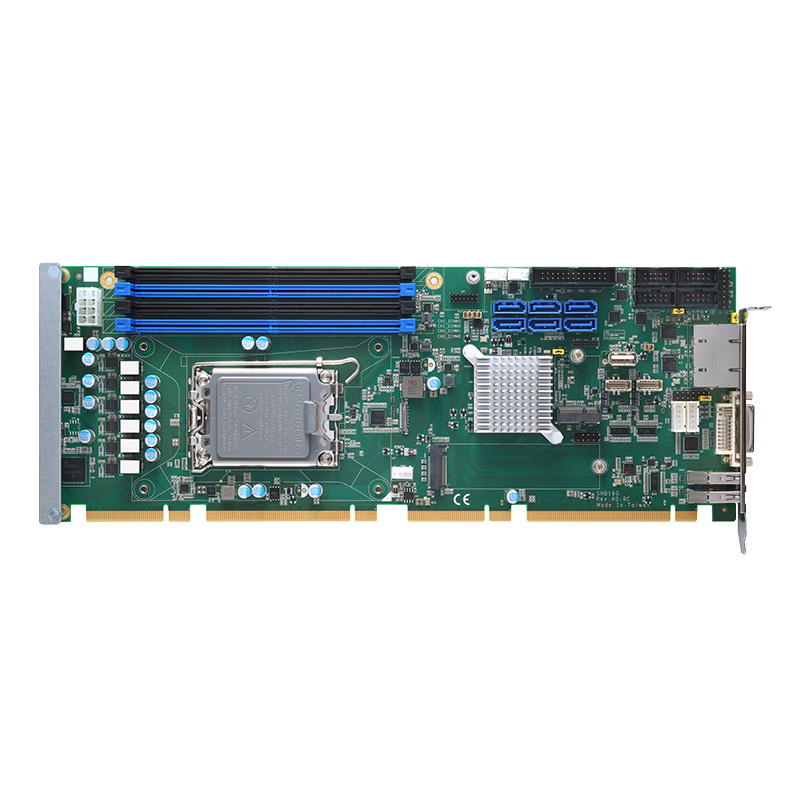

产品特点
- LGA1700 13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
- Intel® R680E/H610E chipset
- DDR5 4400MHz U-DIMM up to 128GB ECC (R680E only)/ non-ECC memory
- Supports Intel® AMT and vPro (R680E)
- TPM 2.0 supported (optional)
- Supports dual 2.5GbE
- Supports LPT port
- Supports M.2 Key M/ Key E (H610E only supports Key E)
- Supports PCIe 4.0 through the gold fingers
产品介绍
Ultra Compact Edge AI Developer Kit for Full-Featured AI Applications
AIE110-XNX, its new edge AI developer kit powered by the NVIDIA® Jetson Xavier™ NX platform which features 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU delivering up to 21 TOPS of accelerated AI computing performance and integrates an advanced 384-core NVIDIA Volta™ GPU with 48 Tensor Cores. Aimed to save effort on system integration and reduce complexity for embedded developers, the AIE110-XNX enables users to develop AI solutions on a friendly budget with no limit of minimum order. The palm-sized edge AI developer kit is ideal for system integrators, makers, and learners to build more AI innovation with little effort.
Supercomputer Performance
The AIE110-XNX features 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU delivering up to 21 TOPS of accelerated AI computing performance and integrates an advanced 384-core NVIDIA Volta™ GPU with 48 Tensor Cores.
NVIDIA JetPack Support
With NVIDIA JetPack support, the AIE110-XNX provides a full development environment for end-to-end accelerated development on Nvidia Jetson modules, to foster the development of AI-assisted operations across industries.
Rugged & Reliable Design
The AIE110-XNX has a rugged design for harsh environments, allowing it to operate under a wide temperature range from -10°C to +60°C and vibration of up to 3 Grms. It has 8GB of LPDDR4x memory and 16GB eMMC onboard.
Great Expandability
One M.2 Key M 2280 SSD slot with a high-speed PCIe x4 NVMe interface and one Micro SD slot are available for extensive storage needs. It also supports one PCI Express Mini Card slot for Wi-Fi, Bluetooth, LTE, and GPS.
